Summary

The GEP-DS16 frame is innovatively designed to support the DJI O4 Air Unit Pro VTX. It features an integrated top cover with a four-point damping ball structure, ensuring stable footage. With only 6 screws to remove, the AIO and VTX module can be quickly detached, making inspection and maintenance more convenient. The fixed XT30 power port enhances both aesthetics and practicality. Its compact 1.6-inch body allows agile flights through narrow spaces with ease.

Features

1. Integrated top cover with four-point damping ball structure, reducing vibrations and ensuring stable aerial footage.
2. Quick-release structure, only six screws are needed to detach the transmission module.
3. Compatible with DJI O4 Air Unit Pro, featuring a larger CMOS for clearer and sharper imaging.
4. New lightweight injection-molded design, combining reduced weight with durability.
5. Compact 1.6-inch size, portable and efficient for creative shooting in tight spaces.
6. Fixed XT30 power connector, providing a sleek appearance and convenient power management

Specification

• Model: GEP-DS16 Frame
• Dimensions: 100mm*100mm*58mm
• Wheelbase: 91mm
• Carbon Plate Thickness: 2.5mm
• FC Mounting: 25.5mm*25.5mm
• VTX Mounting: 25.5mm*25.5mm
• Motor Mounting: 3-M1.4-φ6.6mm
• Lens Mounting Width: 20mm
• Battery Slot Dimensions: 13mm*17mm*10mm
• Colors: Orange / Grey
• Propellers: 1.6 inch
• Weight: 31.3g±5

Includes

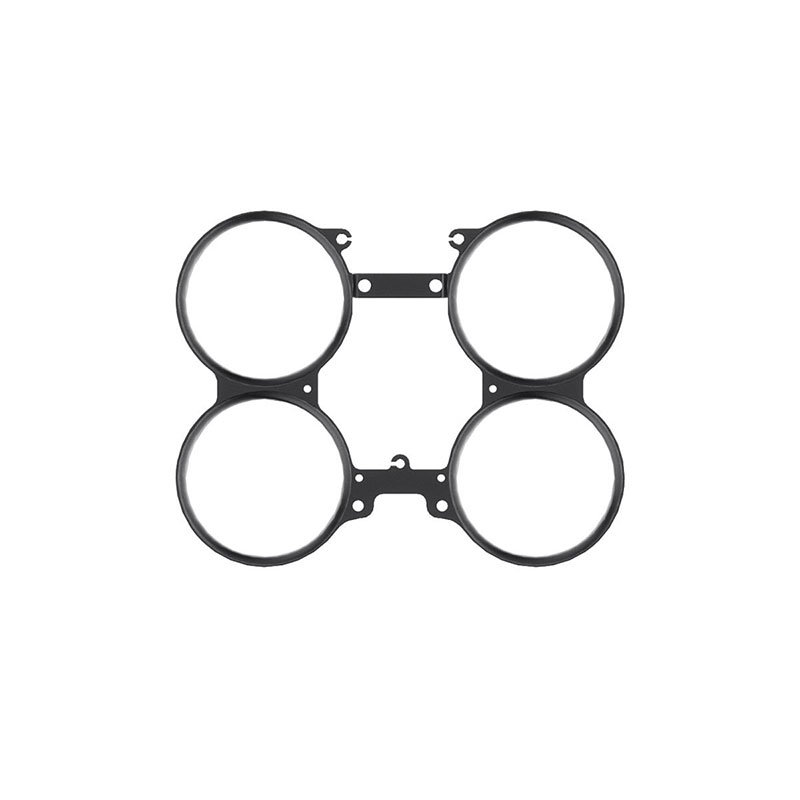

1 × Propeller Guards (Black)
