Summary

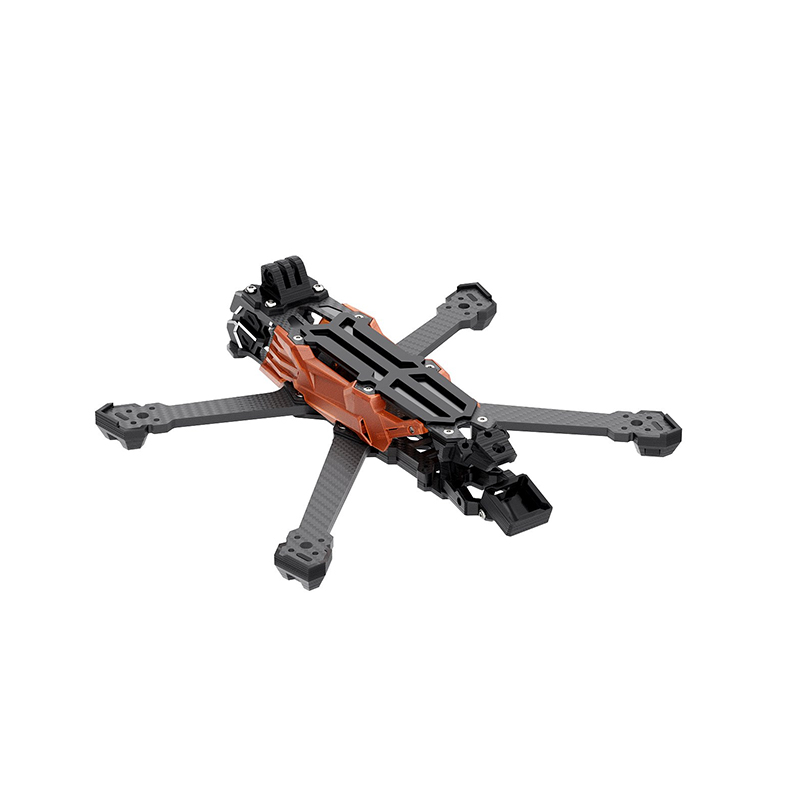

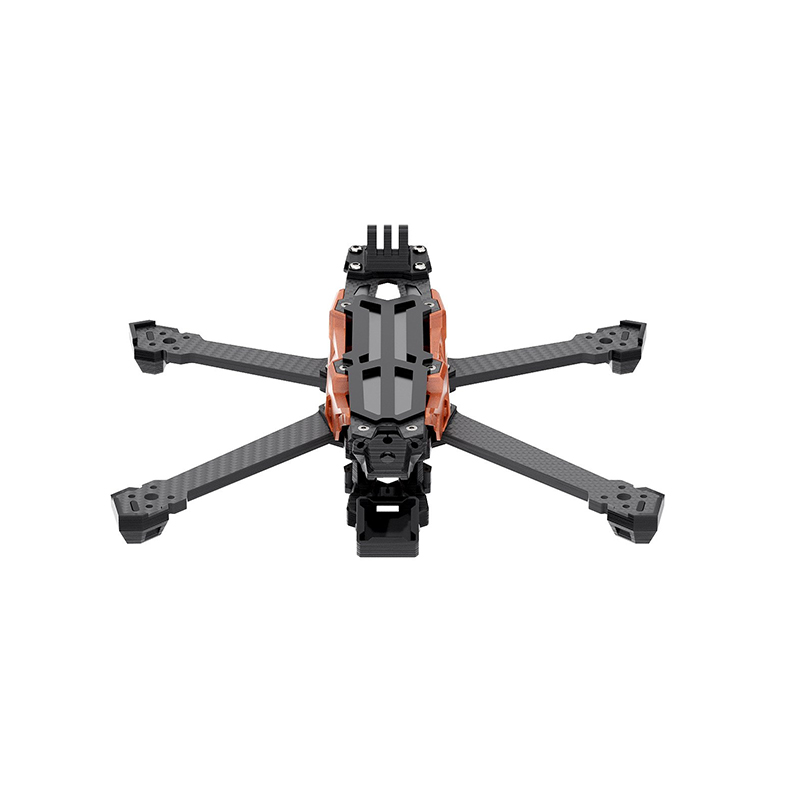

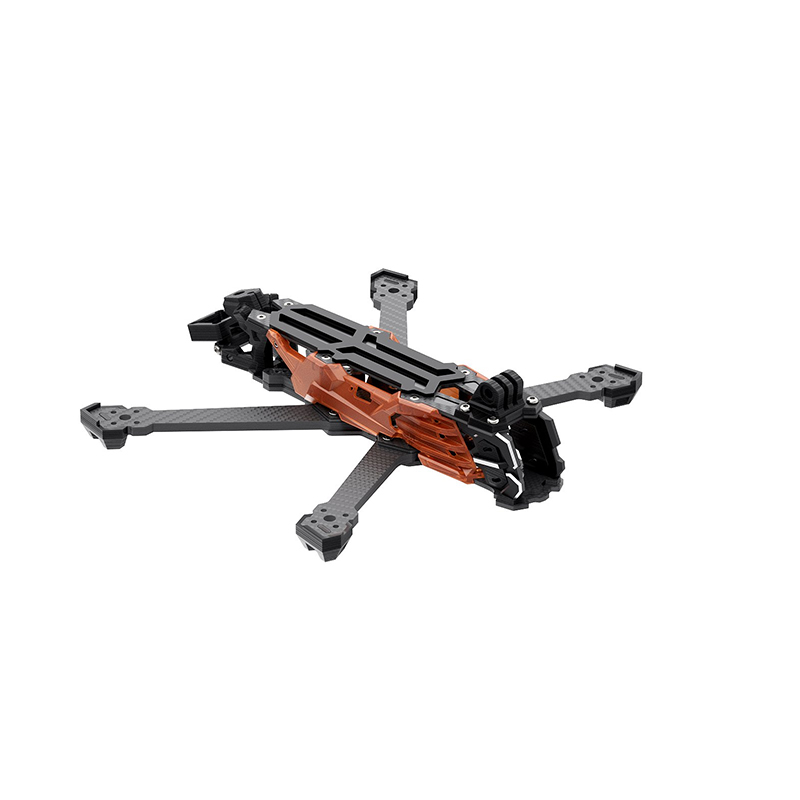

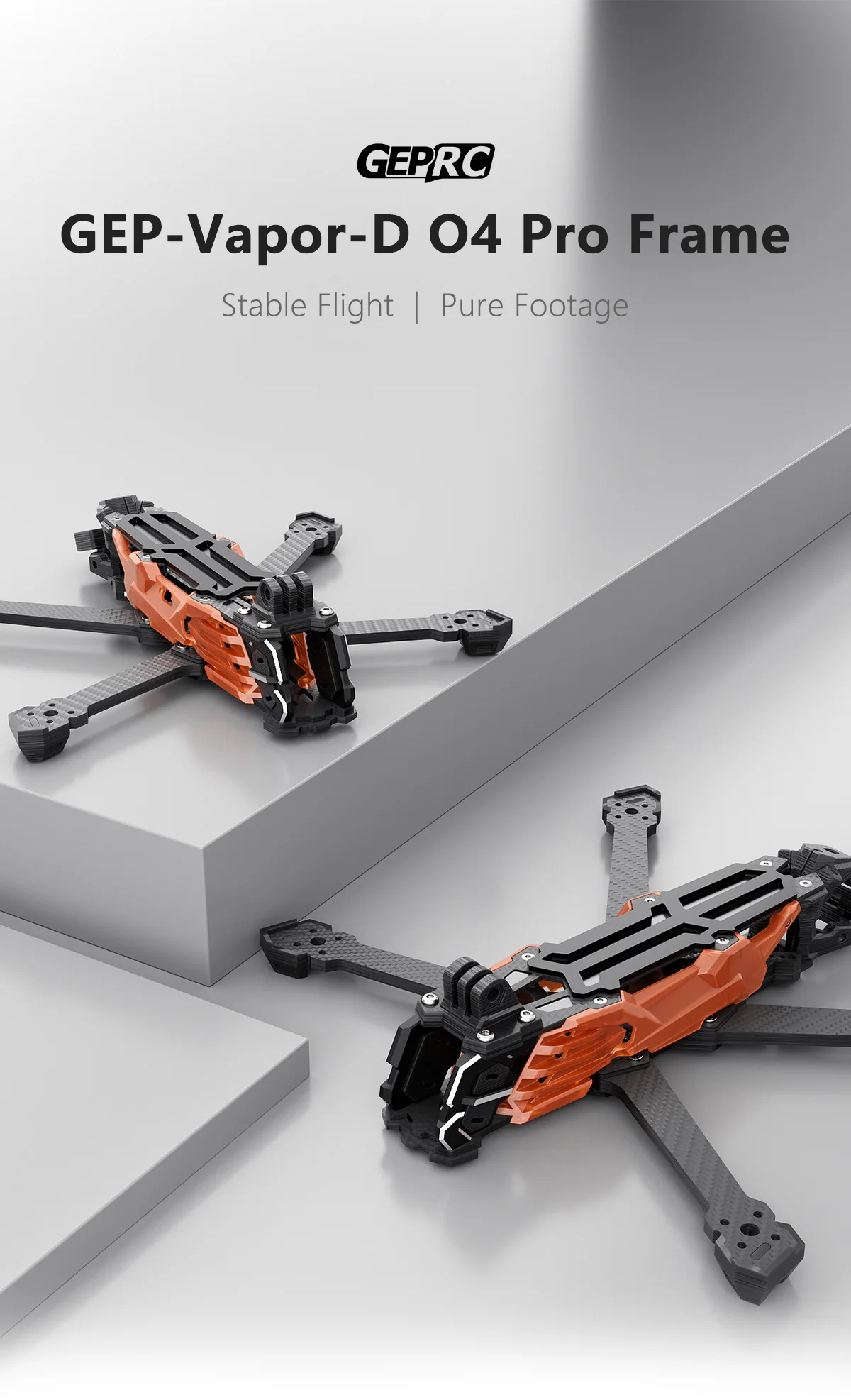

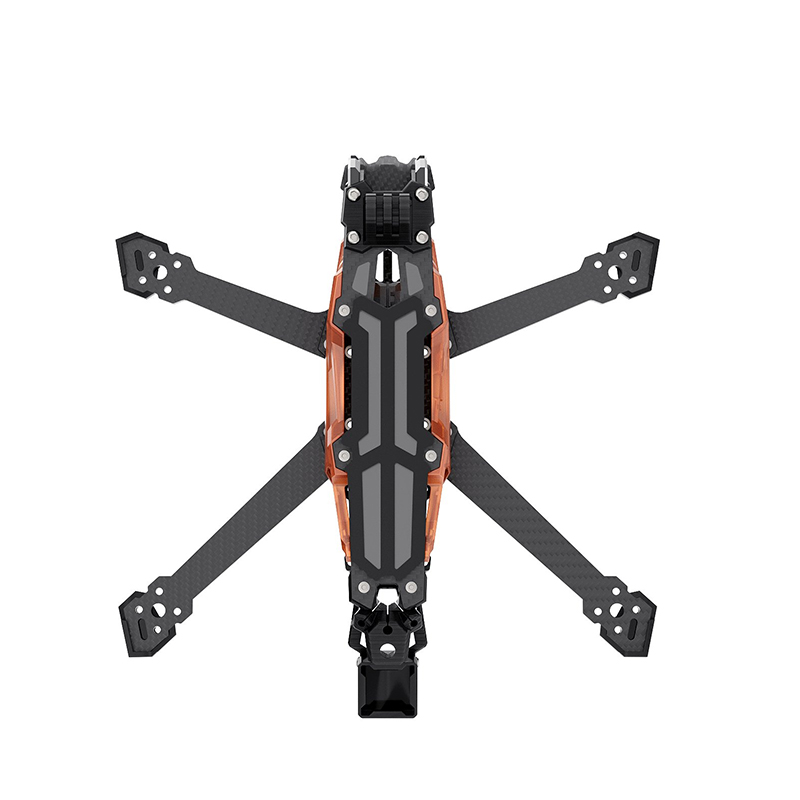

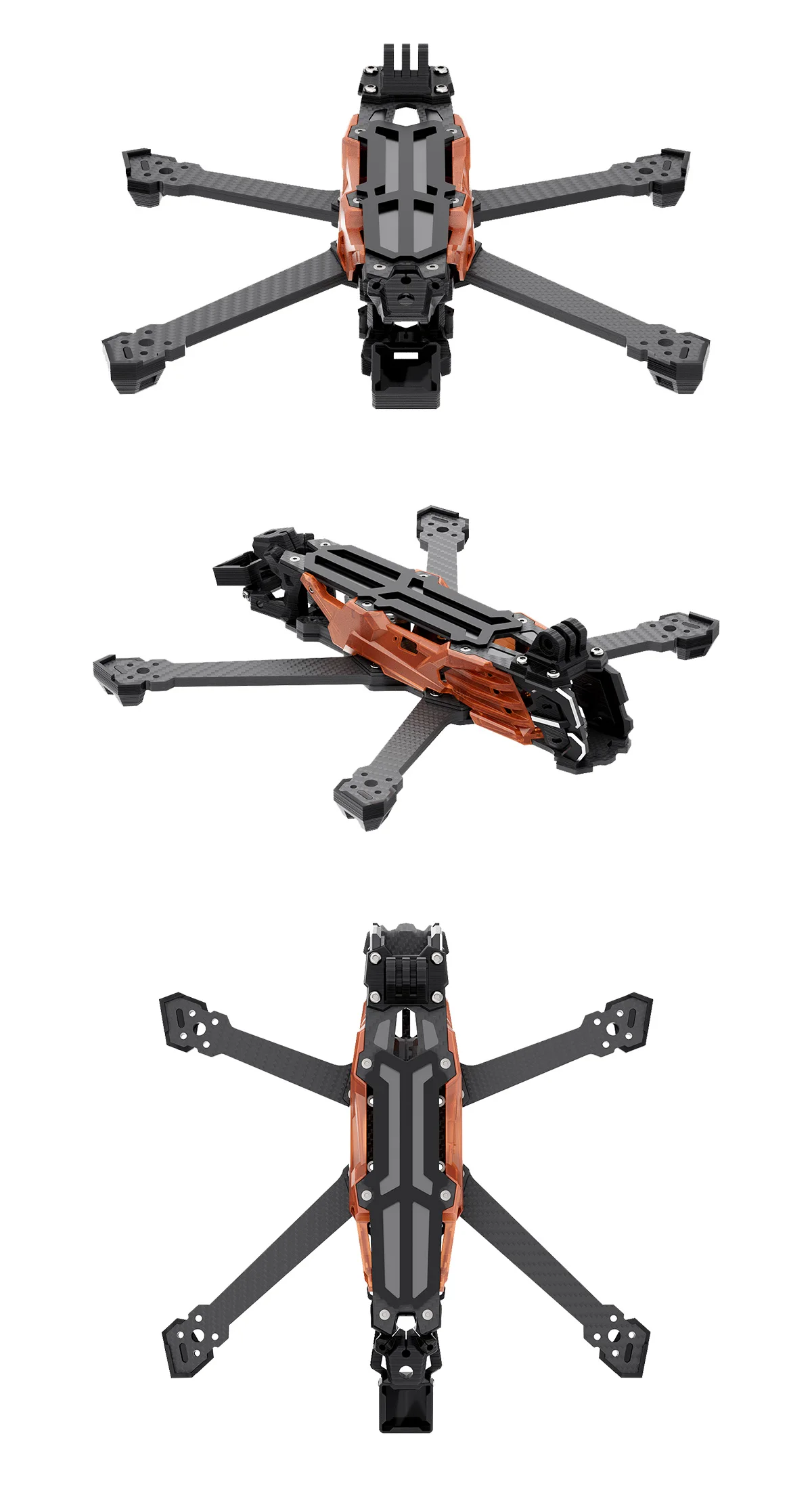

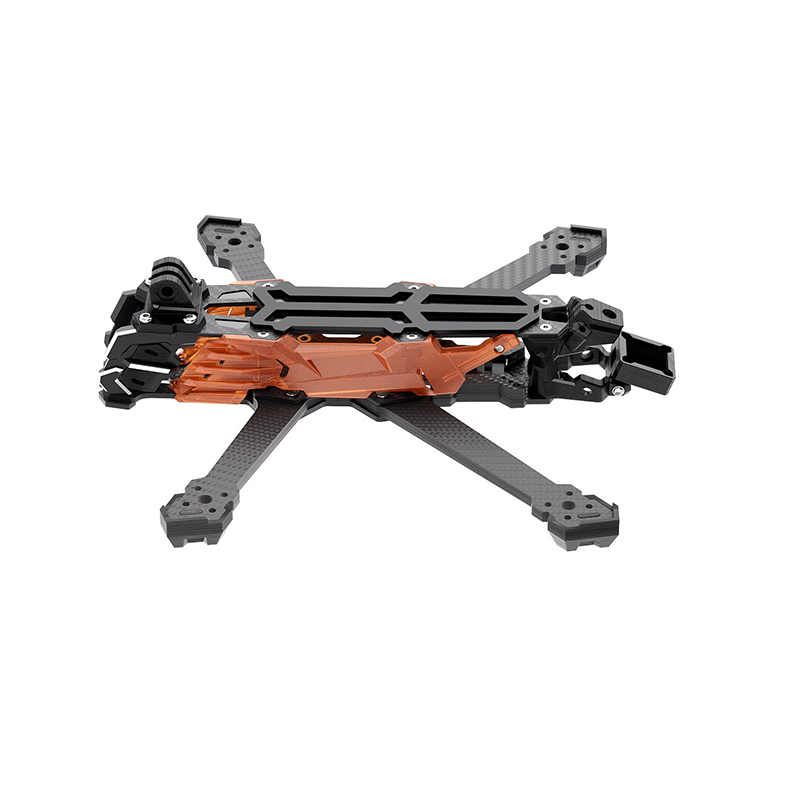

The GEPRC Vapor-D O4 Pro frame is designed for the DJI O4 Air Unit Pro.
It features redesigned aluminum camera mounts and vibration-damping silicone for better compatibility and reduced resonance.
The sleek side panels highlight its mech-inspired design.
With a DC structure, it provides interference-free footage and smooth flight. Built from high-strength carbon fiber, it’s lightweight, durable, and performs reliably in all conditions.
The GEP-Vapor-D O4 Pro ensures clean footage and dependable flight for aerial filming.

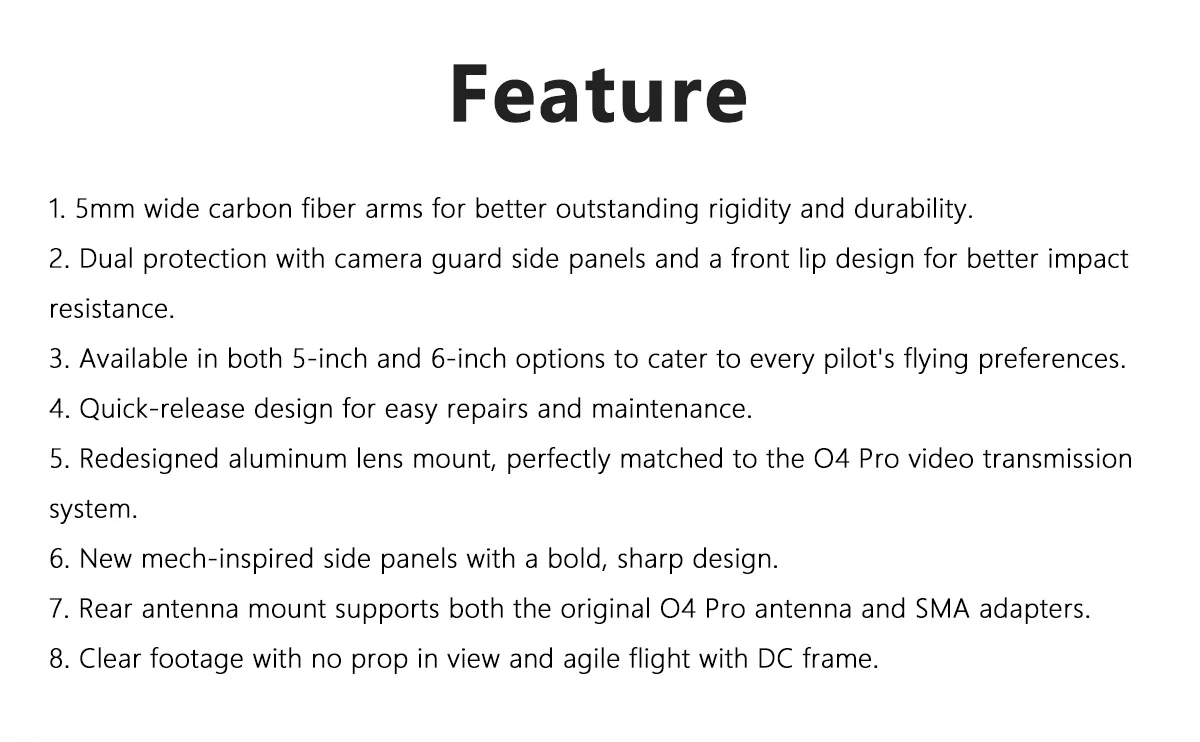

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

4. Quick-release design for easy repairs and maintenance.

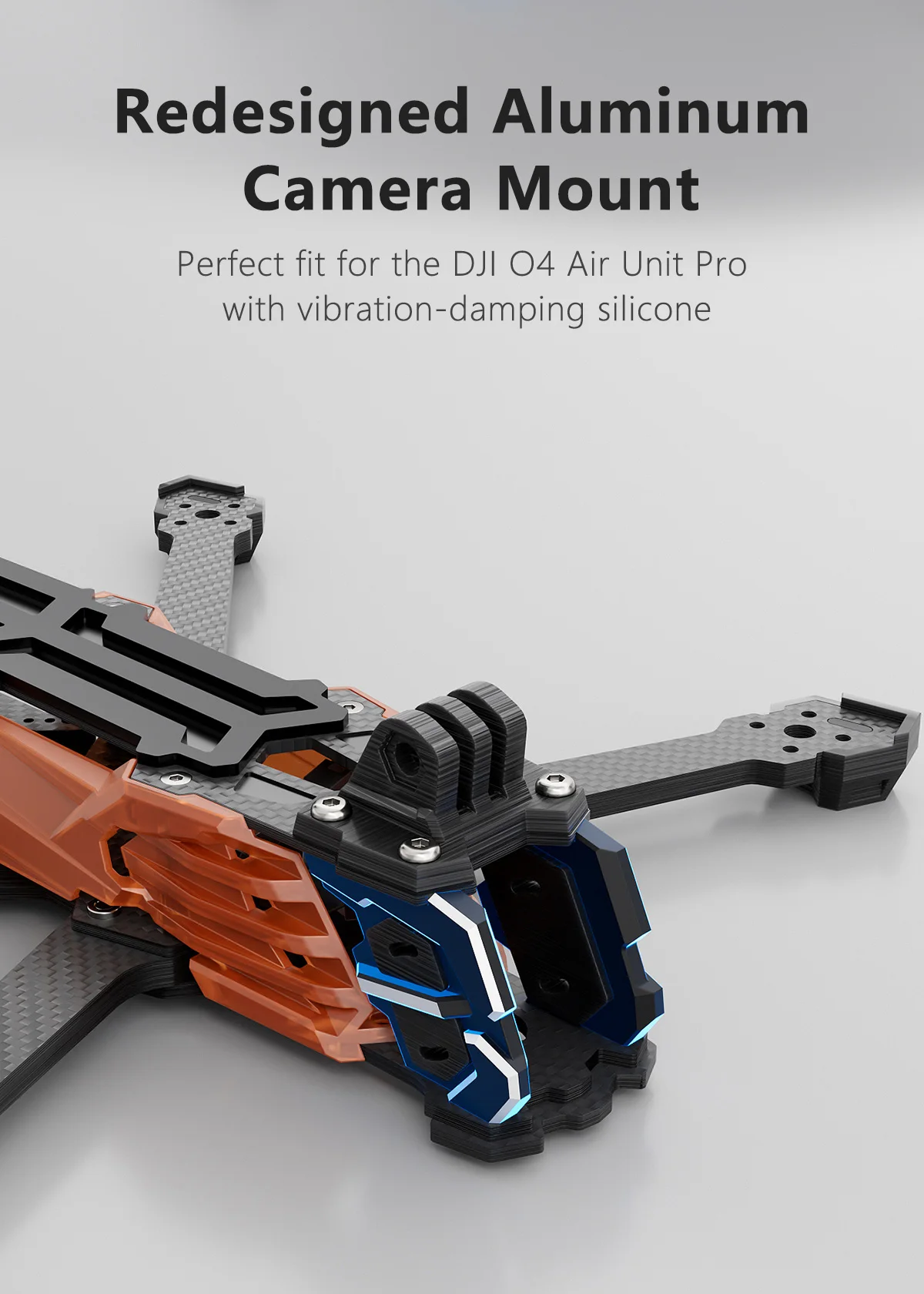

5. Redesigned aluminum lens mount, perfectly matched to the O4 Pro VTX.

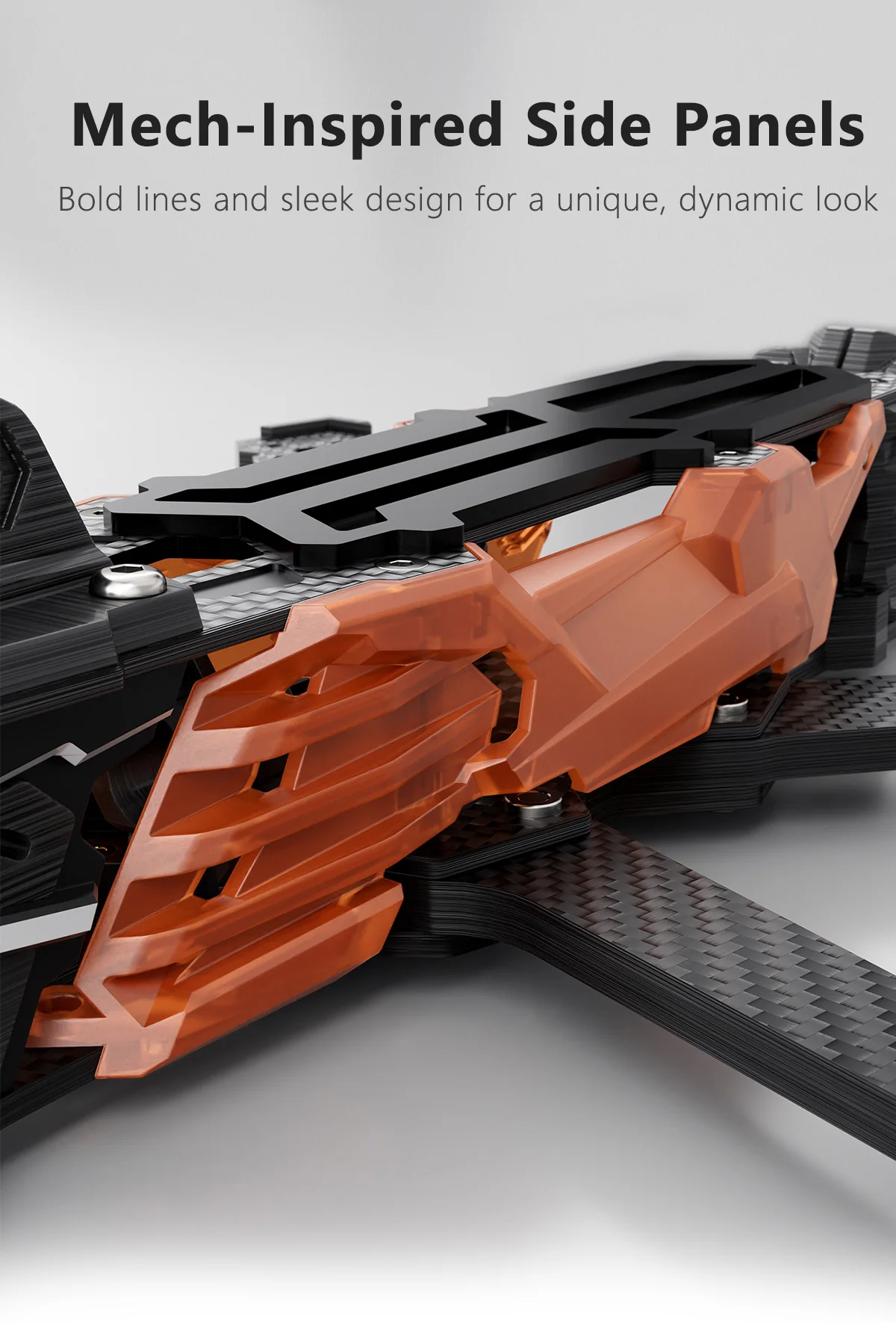

6. New mech-inspired side panels with a bold, sharp design.

7. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

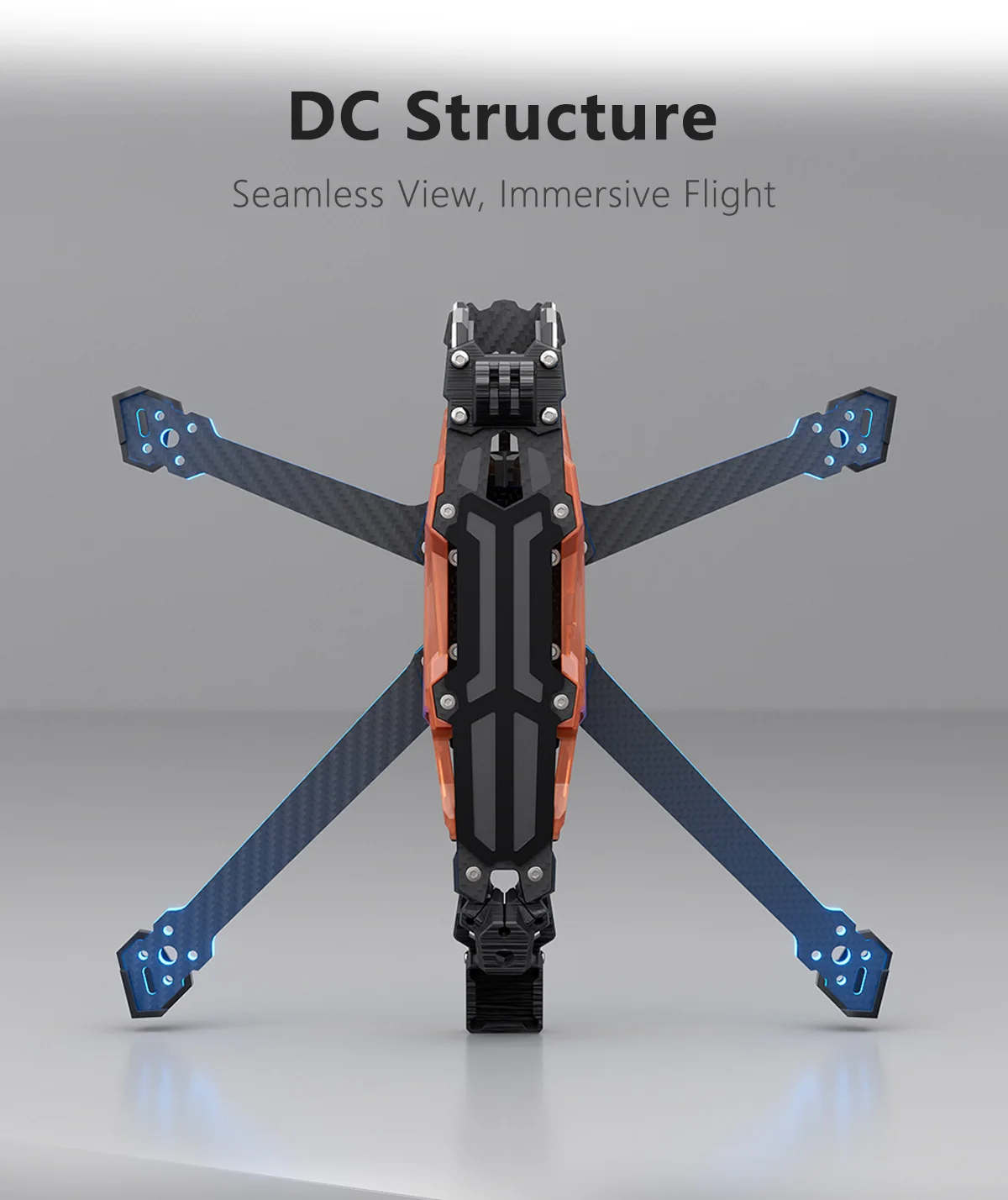

8. Clear footage with no prop in view and agile flight with DC frame.

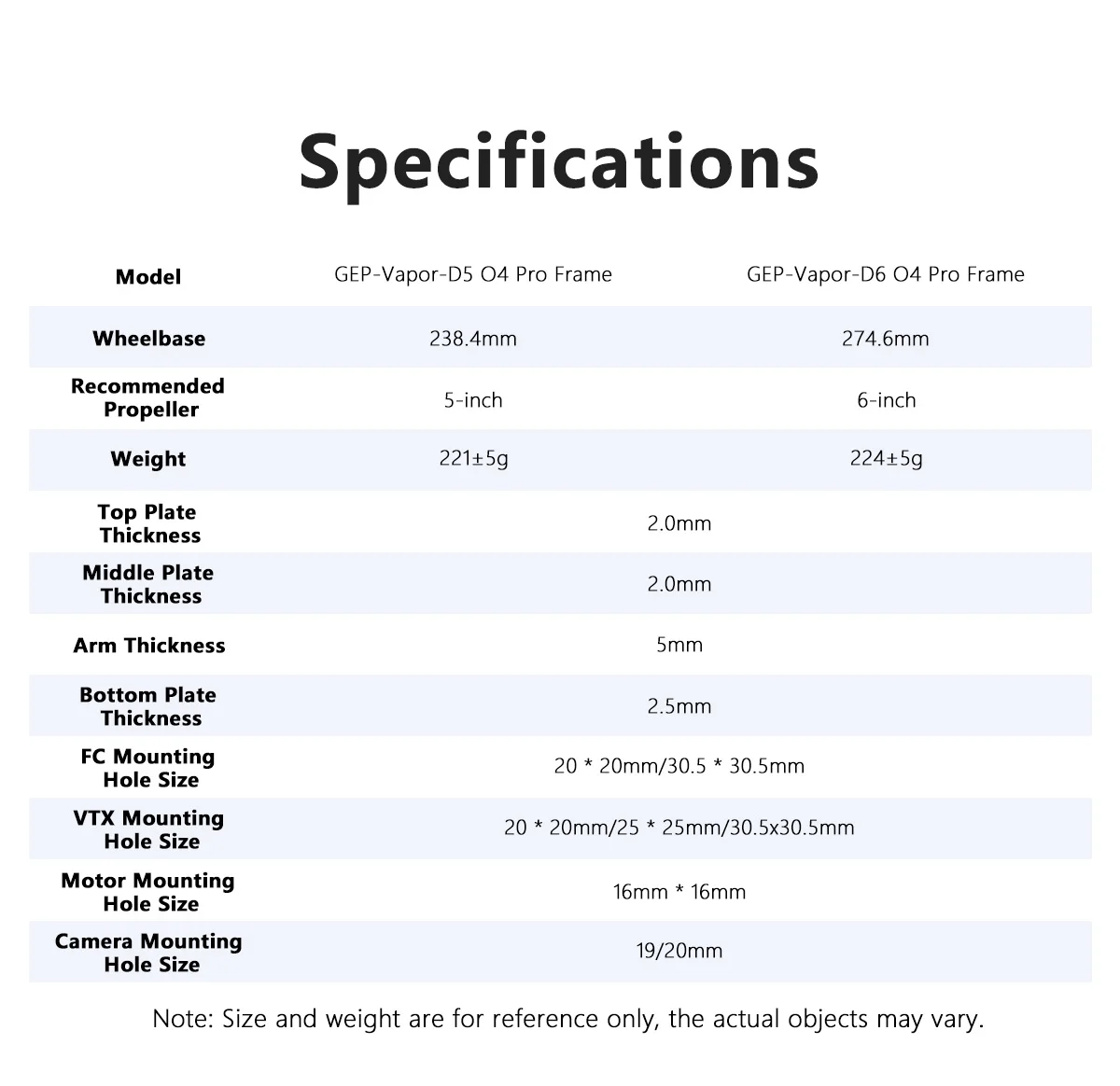

D5 Specifications

• Model: GEP-Vapor-D5 O4 Pro Frame

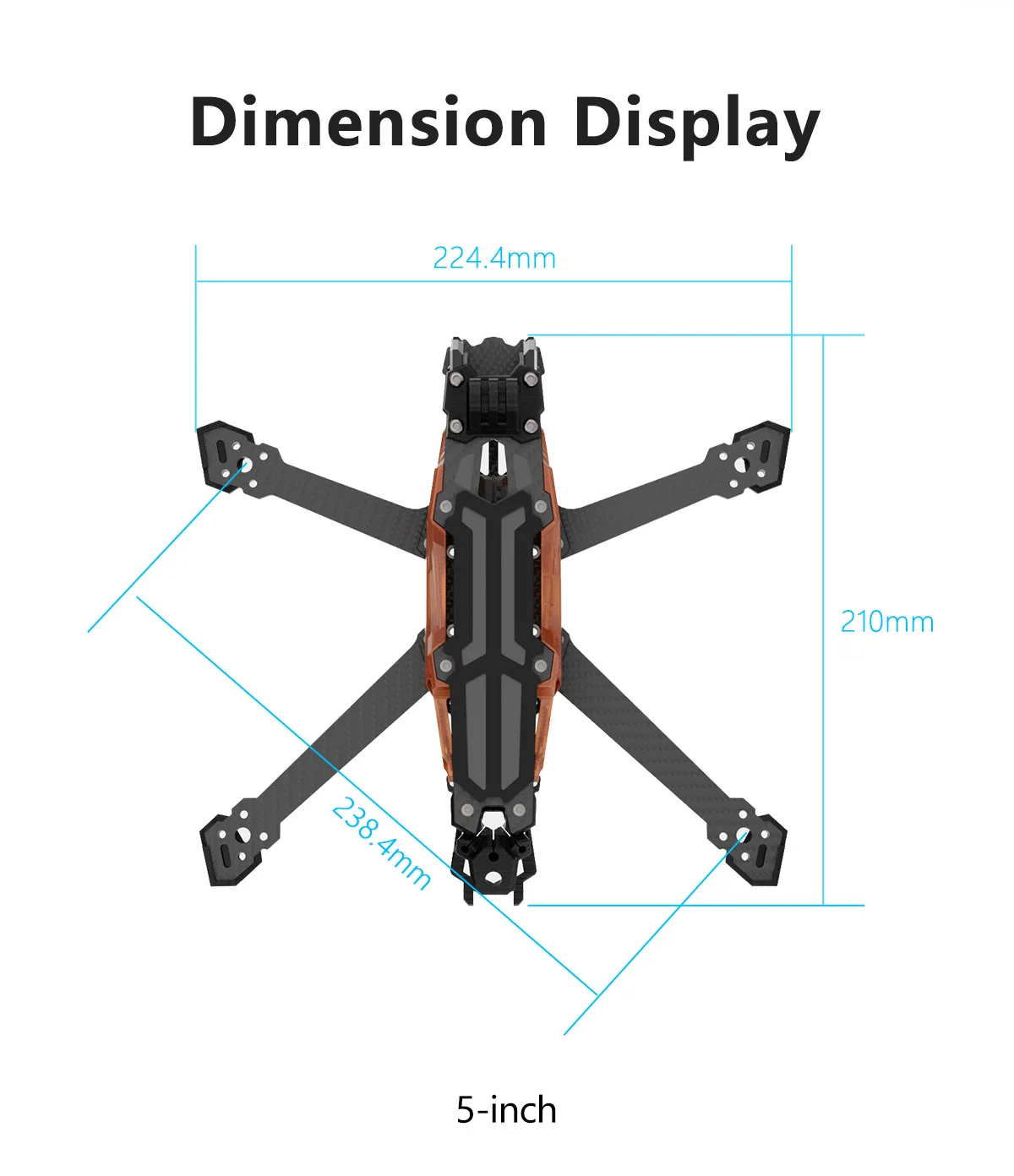

• Wheelbase: 238.4mm
• Top Plate Thickness: 2.0mm
• Middle Plate Thickness: 2.0mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19mm / 20mm
• Recommended Propeller: 5-inch
• Weight: 221±5g

D6 Specifications

• Model: GEP-Vapor-D6 O4 Pro Frame
• Wheelbase: 274.6mm
• Top Plate Thickness: 2.0mm
• Middle Plate Thickness: 2.0mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19mm / 20mm
• Recommended Propeller: 6-inch
• Weight: 224±5g

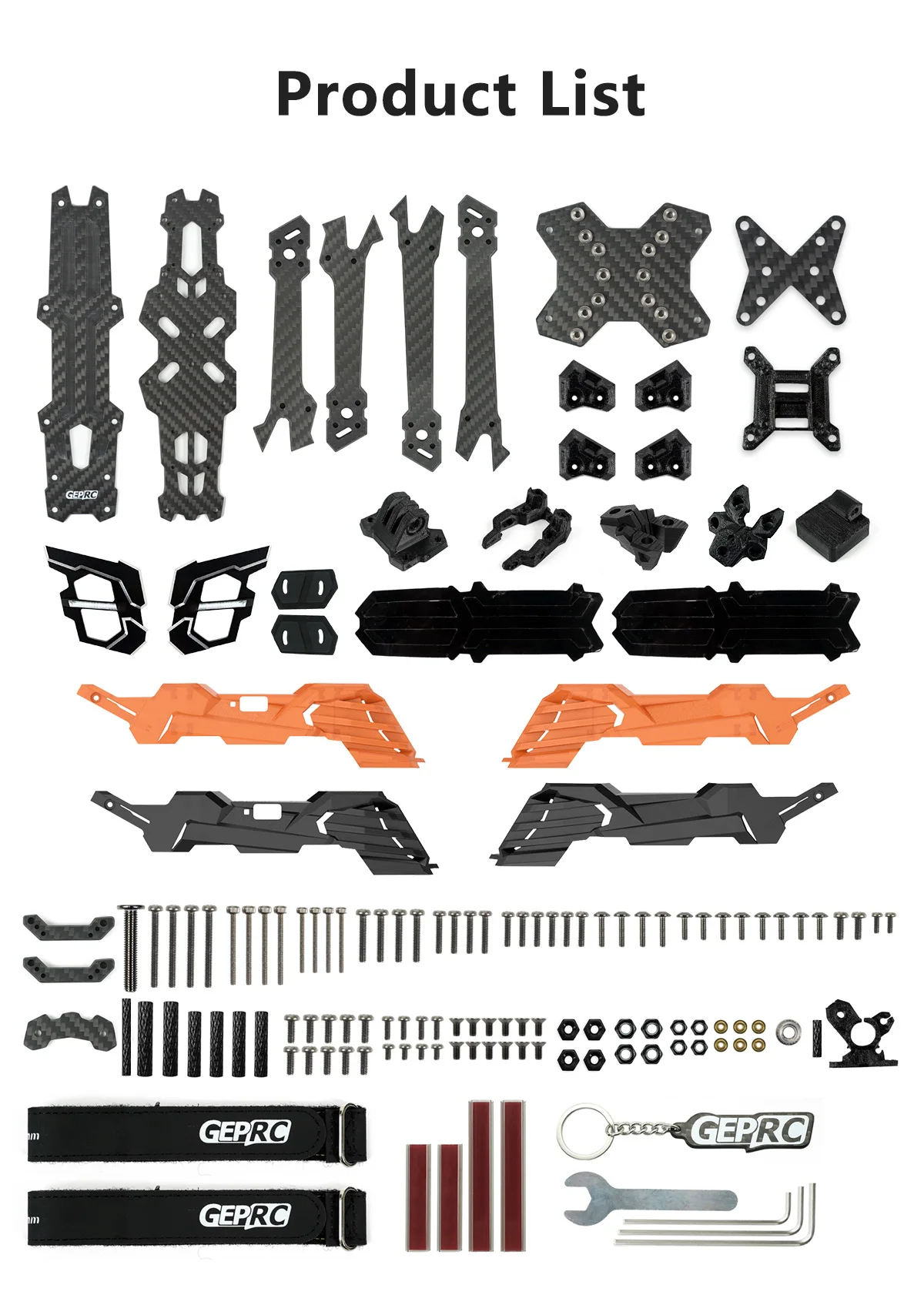

D5 Includes

1 x GEP-Vapor-D5 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printouts pack

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm）

1 x L-shaped screwdriver (3mm)

1 x M8 wrench

D6 Includes

1 x GEP-Vapor-D6 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printouts pack

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
