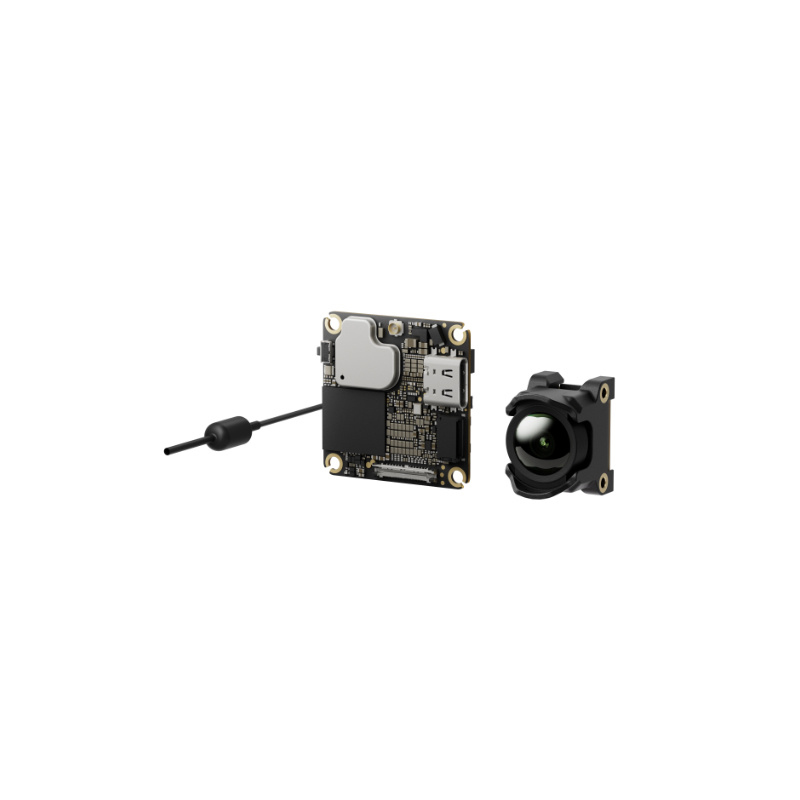

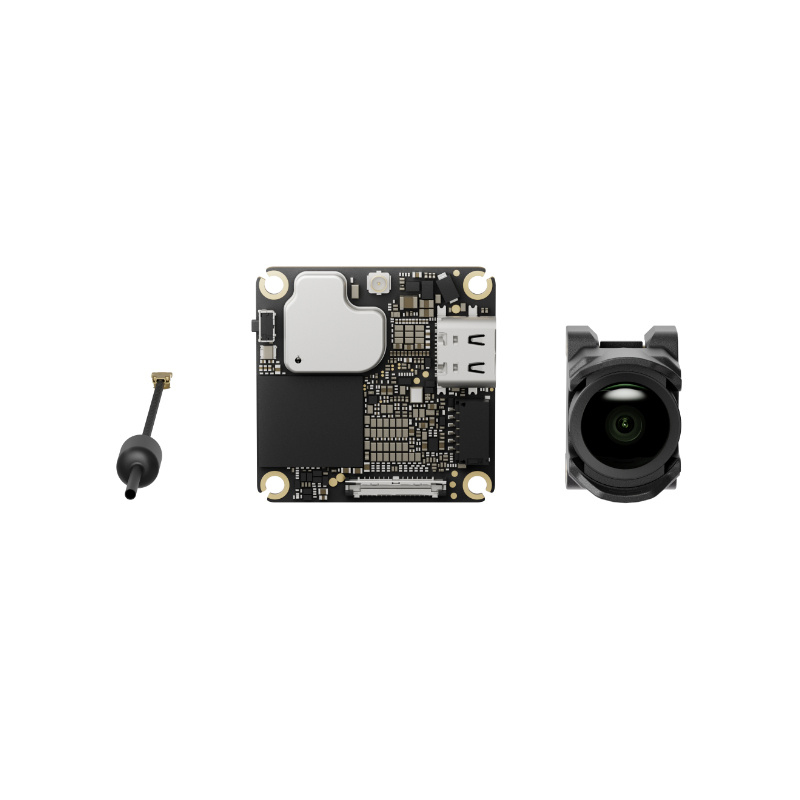

DJI O4 Wide Air Unit

Overview

The DJI O4 lineup expands further with the introduction of the DJI O4 Wide Air Unit, designed to provide an ultra-wide viewing experience without sacrificing the core strengths of the O4 platform. Compared to the standard O4 Air Unit with a 117° field of view, the Wide version dramatically increases coverage to 159°, making it the widest FOV option in the DJI O4 range.

Alongside the expanded perspective, the O4 Wide maintains the excellent image clarity, dependable signal stability, and long-range transmission performance that DJI’s digital FPV systems are known for.

Equipped with a 1/2-inch image sensor, the camera supports high-quality 4K recording at up to 60fps, delivering sharp visuals and improved low-light performance for cinematic and freestyle FPV flying.

The system offers transmission distances of up to 10 km under FCC conditions, providing reliable video connectivity for both long-range outdoor flights and complex indoor environments.

The DJI O4 Wide Air Unit is compatible with DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, and DJI Goggles Integra.

Specifications

General

• Product Name: DJI O4 Wide Air Unit
• Video System: DJI O4
• Size Category: Nano
• Mounting Pattern: 25.5 × 25.5mm

Weight

• Air Unit Weight: Approx. 5.1g
• Weight with Camera: Approx. 13.3g
• Antenna Weight: Approx. 0.75g

Camera

• Image Sensor: 1/2-inch
• Maximum Recording Resolution: 4K at 60fps
• Field of View: 159°

Transmission

• Maximum Transmission Distance: Up to 10 km (FCC)
• Transmission Technology: DJI O4 Digital Video Transmission
• Operating Frequencies:



  • 5.170 GHz – 5.250 GHz
  • 5.725 GHz – 5.850 GHz

Power & Environment

• Input Voltage: 3.7V – 13.2V
• Operating Temperature: -10°C to 40°C

Dimensions

• Transmission Module: 30 × 30 × 6mm
• Camera Module: 20.5 × 14 × 20.5mm

Cable & Antenna

• Coaxial Cable Length: 50mm
• 3-in-1 Cable Length: 50mm
• Antenna Length: 80mm

Connectivity

• USB Port: USB-C
• Radio Protocol: S.Bus
• Storage Support: microSD Card Slot

Racing Mode

• Resolution: 1080p at 100fps

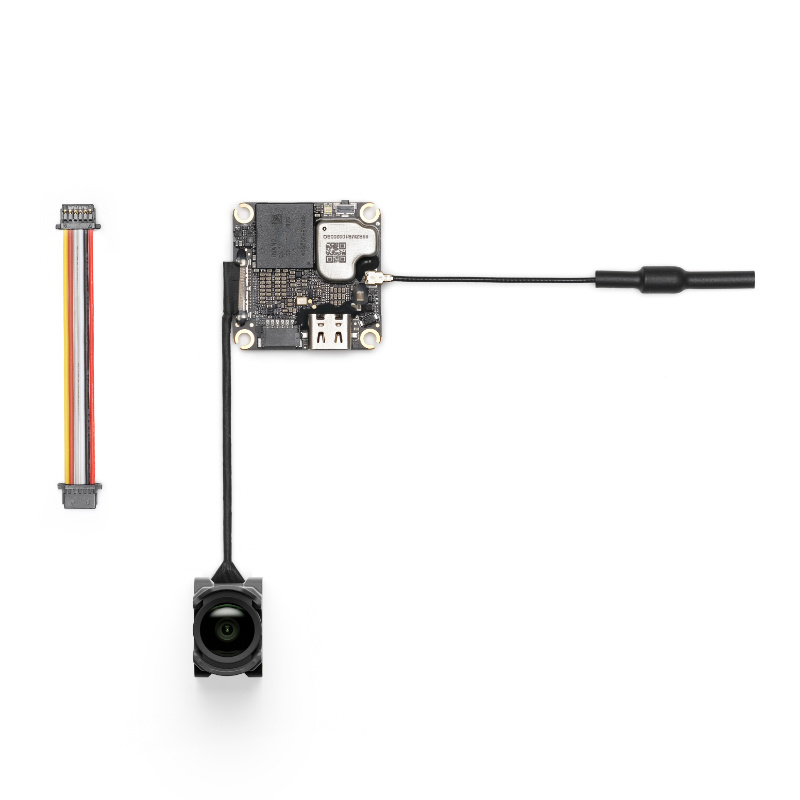

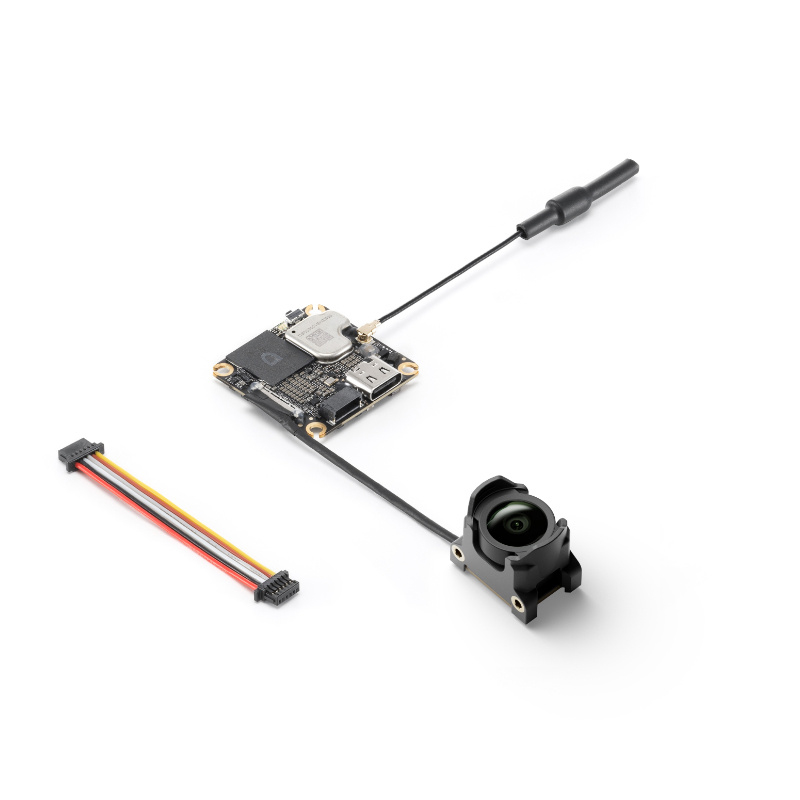

Package Includes

• 1 × DJI O4 Wide Air Unit Camera Module
• 1 × DJI O4 Air Unit Transmission Module
• 1 × DJI O4 Air Unit Antenna
• 1 × DJI O4 Air Unit 3-in-1 Cable

Frequently Asked Questions

What is the difference between the DJI O4 Air Unit and the DJI O4 Wide Air Unit?

The O4 Wide Air Unit increases the field of view from 117° to 159°, offering a much wider viewing perspective while maintaining the lightweight design and reliable DJI O4 transmission system.

Does the DJI O4 Wide Air Unit support 4K recording?

Yes, the system can record video in resolutions up to 4K at 60fps.

Is the DJI O4 Wide Air Unit good for freestyle FPV flying?

Yes, the lightweight construction combined with the ultra-wide 159° FOV makes it an excellent choice for freestyle and cinematic FPV applications.

Which DJI goggles are compatible?

Supported goggles include:

• DJI Goggles 3
• DJI Goggles N3
• DJI Goggles 2
• DJI Goggles Integra
